124 Counter control, is a card that is used in the NORD-1 CPU.

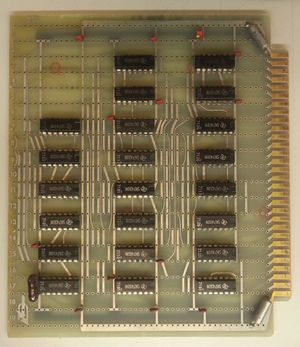

Component side.

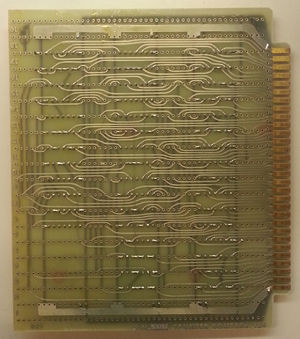

Solder side.

Introduction

The card is made in the standard NORD-1 card format.

CPU model Crate position
29 D03
35 D03

The logic diagram is documented in drawing 2A24.[1]

Switches and indicators

There are no switches or indicators on this board.

BOM

This list contains the logic circuits used, passive components are not listed.

  • 10 x 7400
  • 1 x 7402
  • 1 x 7410
  • 2 x 7420
  • 4 x 7430
  • 1 x 7440
  • 3 x 7450

Reference

  1. ↑ HARDWARE MANUAL NORD 1
