106 (NORD-1 card)
Jump to navigation
Jump to search

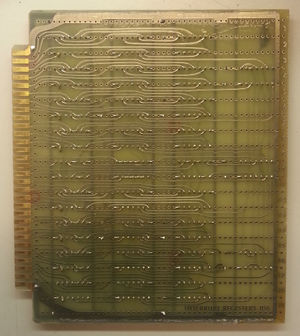

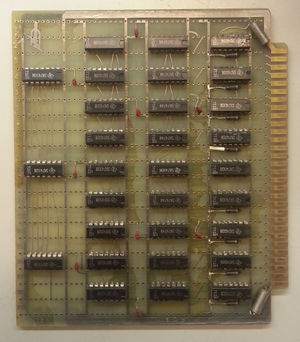

106 Interrupt registers, is a card that is used in the NORD-1 CPU.
This article is a stub. You can improve NDWiki by expanding it. |
Introduction
The card is made in the standard NORD-1 card format.
CPU model | Crate position |
---|---|
29 | C05, C06 |
35 | C05, C06 |
The logic diagram is documented in drawing 2A06.[1]
Switches and indicators
There are no switches or indicators on this board.
BOM
This list contains the logic circuits used, passive components are not listed.
- 9 x 7400
- 3 x 7410
- 1 x 7440
- 9 x 7450
- 8 x 7474
Reference
- ↑ HARDWARE MANUAL NORD 1
- Hardware in NORD-1 Serial 47
