NORD-100 crate with unknown serial number 3 was part of the large collection I took stewardship over.

Current status

The crate has been used just for storage of loose cards, so there are a lot of pieces in the wrong position and it has nothing to do with the I/O cabling still attached. There are no plans for making something out of this at the moment so the content is recorded just to keep track of the various cards I have.

It is a 23 position crate.

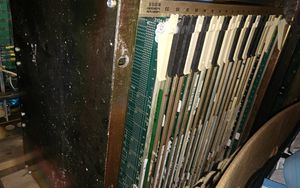

Front of the crate showing all the cards

CPU rack containing :

 1. 3013 NO100 8 TERM IF
 2. Empty
 3. Empty
 4. 3024 NO100 NO10 BUS AD
 5. Empty
 6. 3022 NO100 NO500 IF.
 7. 3006 NO100 PERTEC CTR.
 8. 3010 NO100 SMD DATA
 9. 3018 NO100 SMD CONTR.
10. 3027 NO100 FL.DISC CTR.
11. 3034 NO100 512K RAM ???
12. 3013 8 TERMINAL INTERFACE
13. 3034 NO100 512K RAM
14. 3013 8 TERMINAL INTERFACE
15. 3034 NO100 512K RAM
16. 3034 NO100 512K RAM
17. 3044 15 MHZ SMD DATA
18. 3043 15 MHZ SMD CONTROL
19. 3034 NO100 512K RAM
20. 3034 NO100 512K RAM
21. 3034 NO100 512K RAM
22. 3034 NO100 512K RAM
23. 3109 MPM LINE DRIVER

Plans

None at the moment.
