165 I/O input, is a card that is used in the NORD-1 CPU.

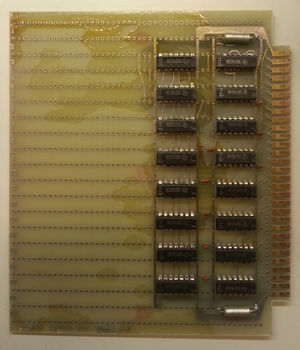

Component side.

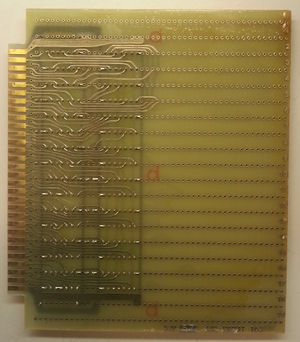

Solder side.

Introduction

The card is made in the standard NORD-1 card format.

CPU model Crate position
29 D23, D24
35 D23, D24

The logic diagram is documented in drawing 2A65.[1]

Switches and indicators

There are no switches or indicators on this board.

BOM

This list contains the logic circuits used, passive components are not listed.

  • 1 x 7402
  • 7 x 7404
  • 8 x 7453

Reference

  1. ↑ HARDWARE MANUAL NORD 1
